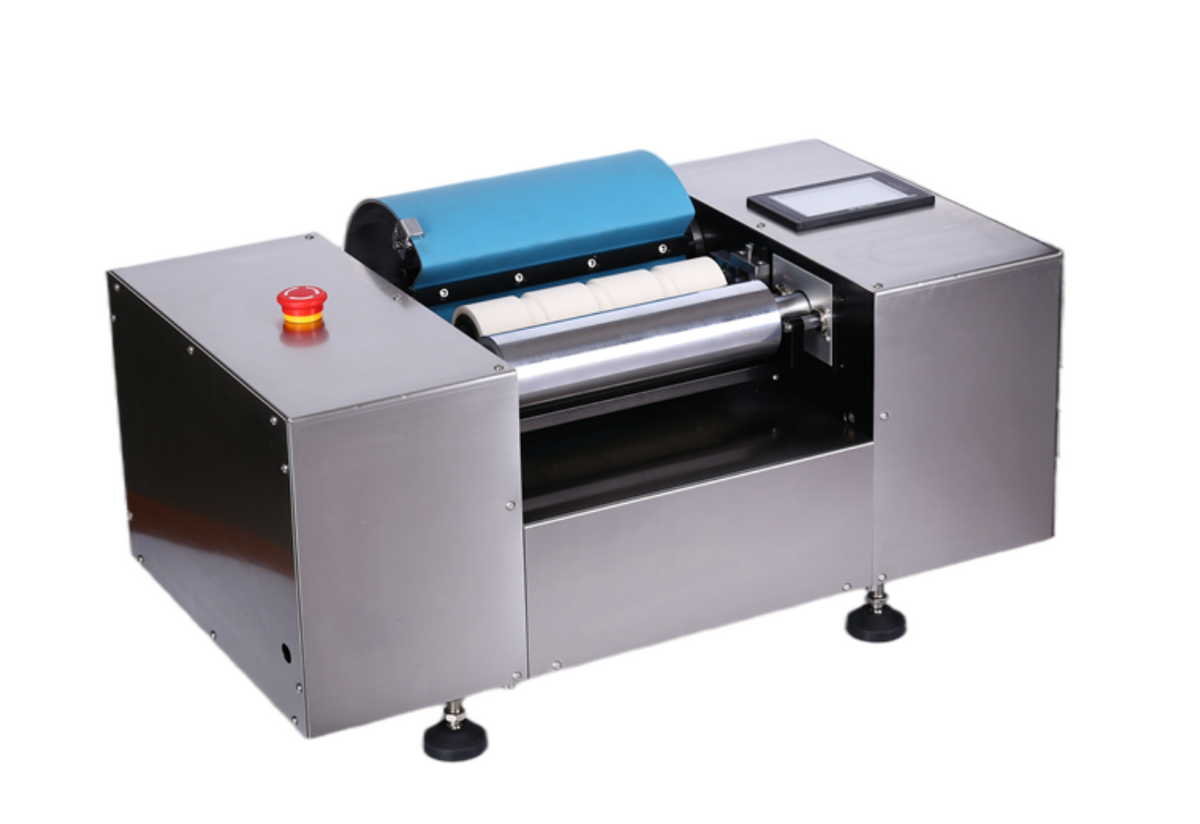

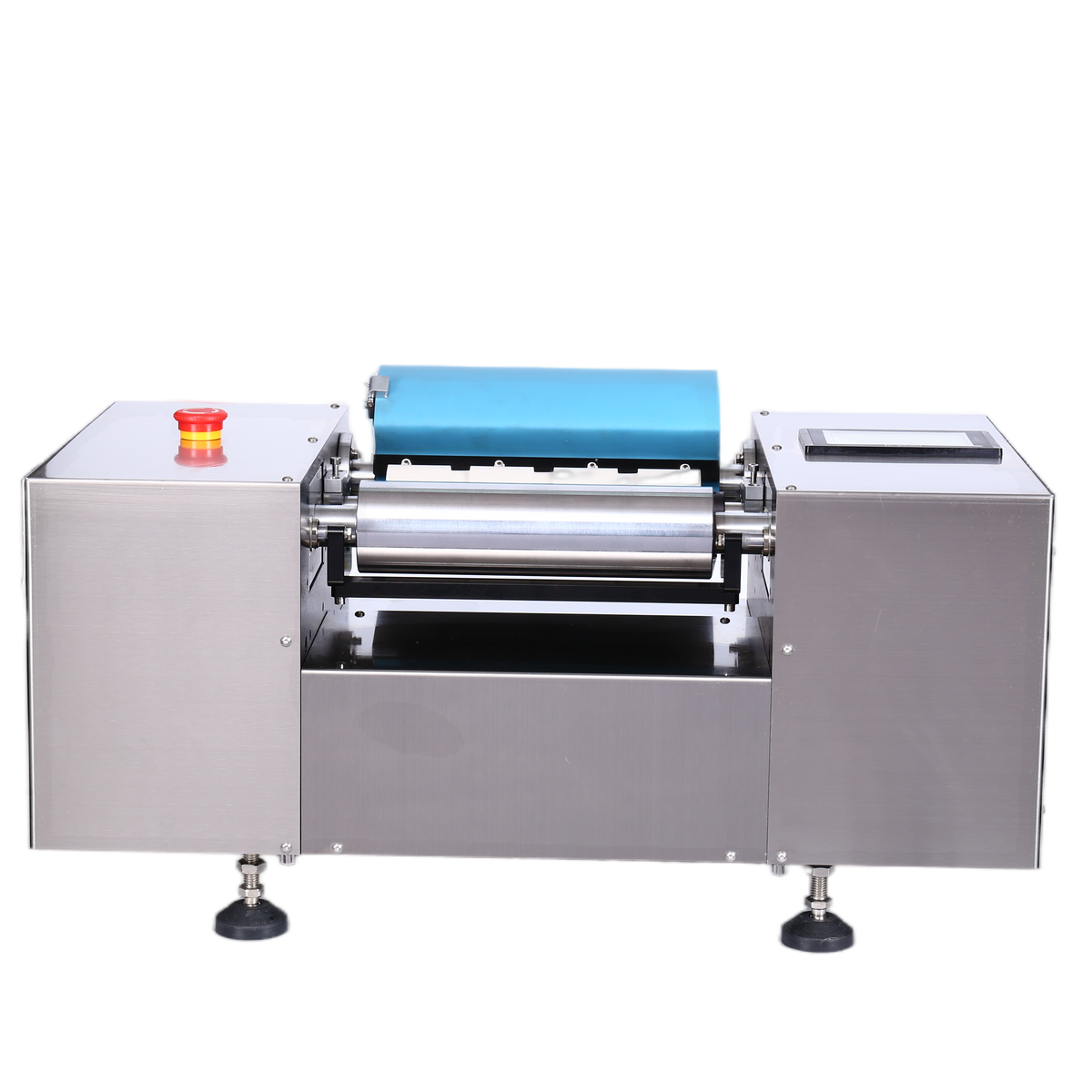

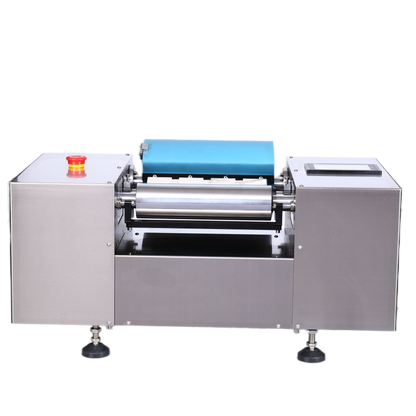

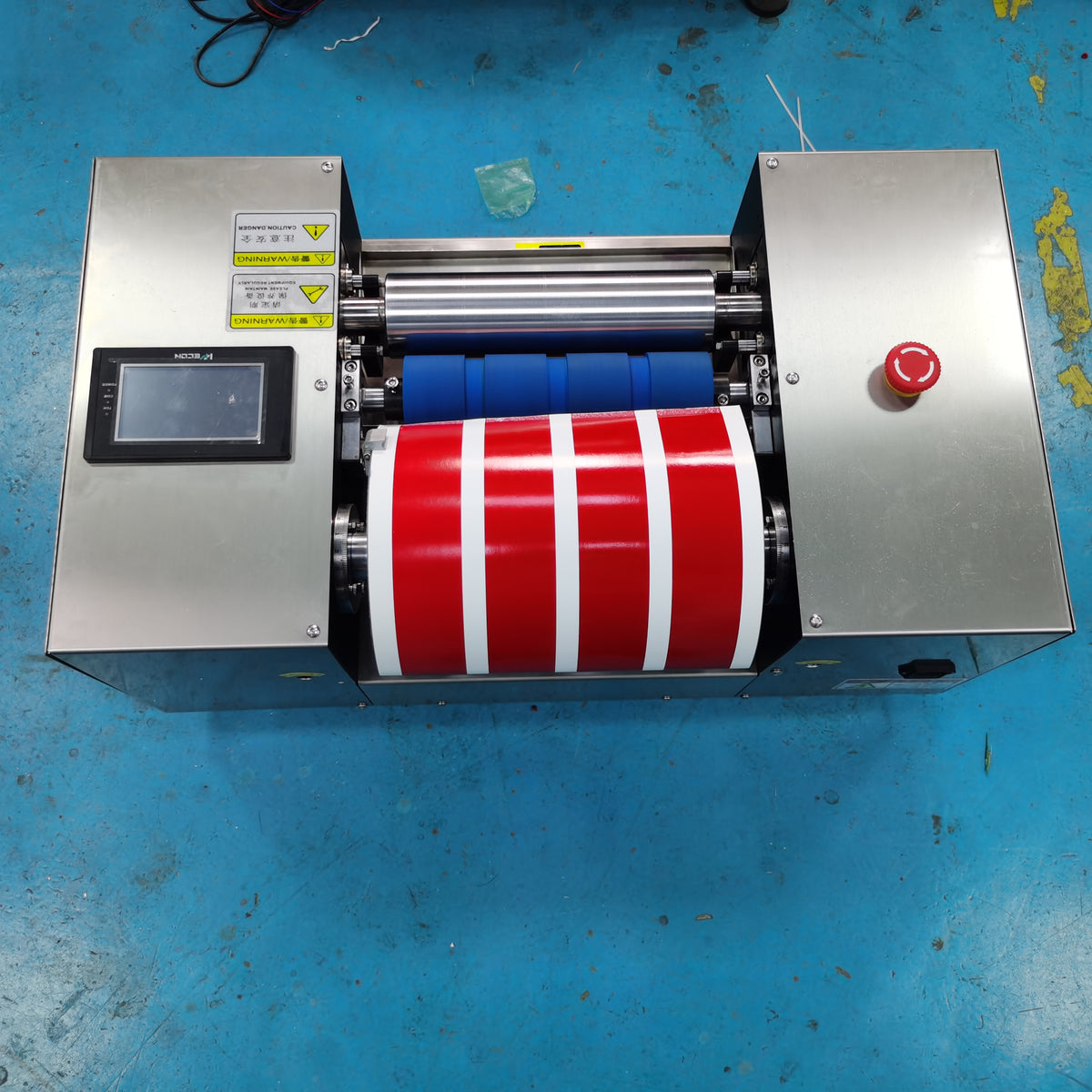

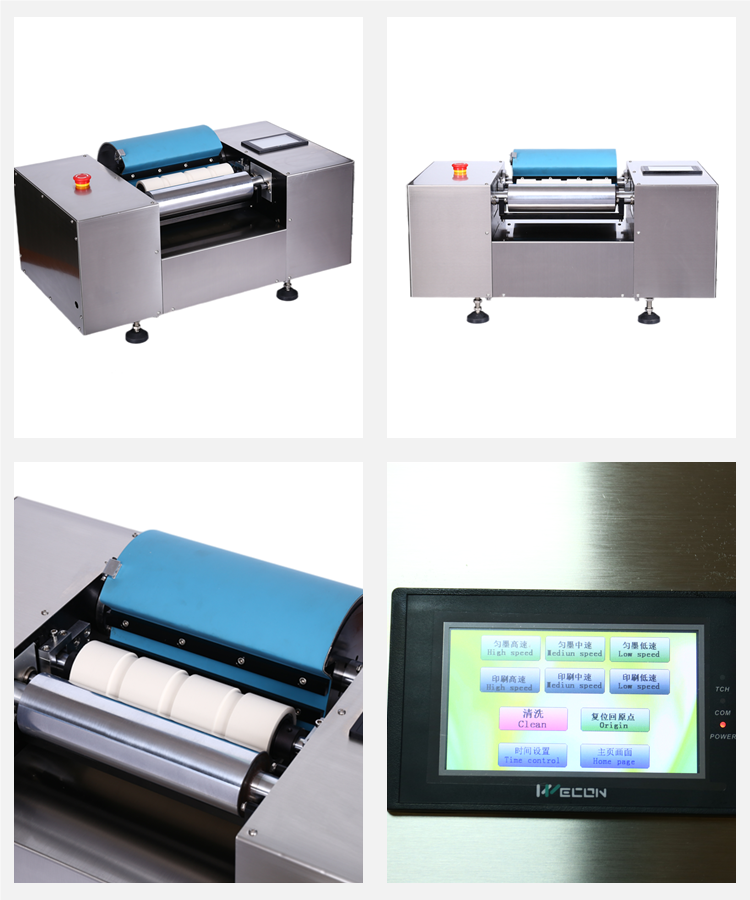

Offset Ink Proofer SEMY-225
The Ink Proofer is one of the core products of Senming Equipment, specifically designed for the printing, packaging, advertising design, and ink R&D industries. It precisely simulates the color rendering effects of ink on different substrates to ensure color consistency. Through a standardized proofing process, it helps users predict ink hue, optimize production quality control, and reduce rework costs.
Applicable Ink Types: Lithographic and letterpress conventional inks, UV inks, UV flexographic inks
Substrate Compatibility: Paper (book paper, chrome paper, matte paper, grey board), plastic film, metal foil (e.g., tinplate)
Color Bar Effective Area:
Dual-color bar: 107mm × 225mm
Three-color bar: 70mm × 225mm
Four-color bar: 45mm × 225mm (multi-segment design, supports simultaneous proofing)
Substrate Size: 260mm × 290mm (customizable)
II. Core Performance Parameters
Thickness Control Precision: 0.01mm level (supports substrate thickness testing from 0.1mm to 5mm)
Color Error Control: Delta E ≤ 0.5
Inking Speed:
Three-speed adjustment: 550, 700, 900 rpm (expandable to stepless variable frequency speed control)

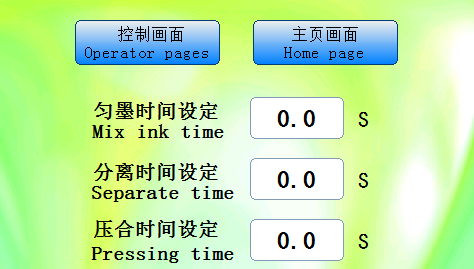

Automatic inking time: 1–999 seconds adjustable (supports multi-segment inking mode)
Printing Speed:
Three-speed adjustment: 10, 16, 22 rpm (expandable to stepless variable frequency speed control)
Printing Pressure: 0–2mm adjustable (automatic or manual adjustment based on substrate thickness)
Inking Pressure: 0–2mm adjustable (manual compensation based on rubber roller wear)
III. Hardware Configuration
Printing Rubber Roller:
Standard: ø67 × 229mm (proofing area 225 × 250mm)
Optional: Rubber roller for conventional inks or UV inks
Control System:

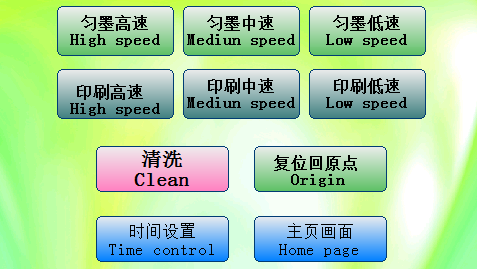

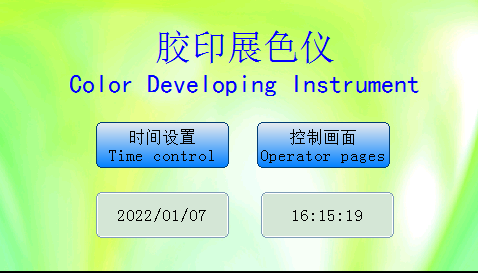

PLC touchscreen centralized control (supports free parameter setting)
Supports oscillation/positioning mode switching to reduce ink flying
Power Supply:
Input voltage: AC220V 50Hz
Power: 400W
Weight: Net weight approx. 85KG
Dimensions: 700 × 380 × 280 (mm)
